Stainless SteelCapillary Pipe

Stainless steel capillary tubes are thin-diameter tubes made of austenitic stainless steel (such as SUS304, 316L, etc.), primarily used in automated instrument signal transmission, wire protection, and precision instrument circuit protection. Available in diameters of 0.7-8 mm and wall thicknesses of 0.05-2.0 mm, they can be cold-worked to increase strength and are widely used in more than ten industries, including chemical, electronics, medical, and aerospace.

WhatsApp:+86 15895317127

Email：jolie@zpsdsteel.com

Tel：+86 15895317127

PRODUCT PARAMETERS

Stainless Steel Capillary tube sizes
ITEM	Grade	Size	Length	Pressure
		(MM)	(Mtrs)
				(Mpa)
1	316L 304L 304 625 825 2205 2507	1/16″×0.025″	3200	80
2	316L 304L 304 625 825 2205 2507	1/8″×0.035″	3200	100
3	316L 304L 304 625 825 2205 2507	1/4″×0.035″	2000	100
4	316L 304L 304 625 825 2205 2507	1/4″×0.049″	2000	100
5	316L 304L 304 625 825 2205 2507	3/8″×0.035″	1500	80
6	316L 304L 304 625 825 2205 2507	3/8″×0.049″	1500	100
7	316L 304L 304 625 825 2205 2507	1/2″×0.049″	1000	80
8	316L 304L 304 625 825 2205 2507	1/2″×0.065″	1000	100
9	316L 304L 304 625 825 2205 2507	φ3mm×0.7mm	3200	80
10	316L 304L 304 625 825 2205 2507	φ3mm×0.9mm	3200	100
11	316L 304L 304 625 825 2205 2507	φ4mm×0.9mm	3000	100
12	316L 304L 304 625 825 2205 2507	φ4mm×1.1mm	3000	100
13	316L 304L 304 625 825 2205 2507	φ6mm×0.9mm	2000	100
14	316L 304L 304 625 825 2205 2507	φ6mm×1.1mm	2000	100
15	316L 304L 304 625 825 2205 2507	φ8mm×1mm	1800	80
16	316L 304L 304 625 825 2205 2507	φ8mm×1.2mm	1800	100
17	316L 304L 304 625 825 2205 2507	φ10mm×1mm	1500	70
18	316L 304L 304 625 825 2205 2507	φ10mm×1.2mm	1500	70
19	316L 304L 304 625 825 2205 2507	φ10mm×2mm	500	100
20	316L 304L 304 625 825 2205 2507	φ12mm×1.5mm	500	80

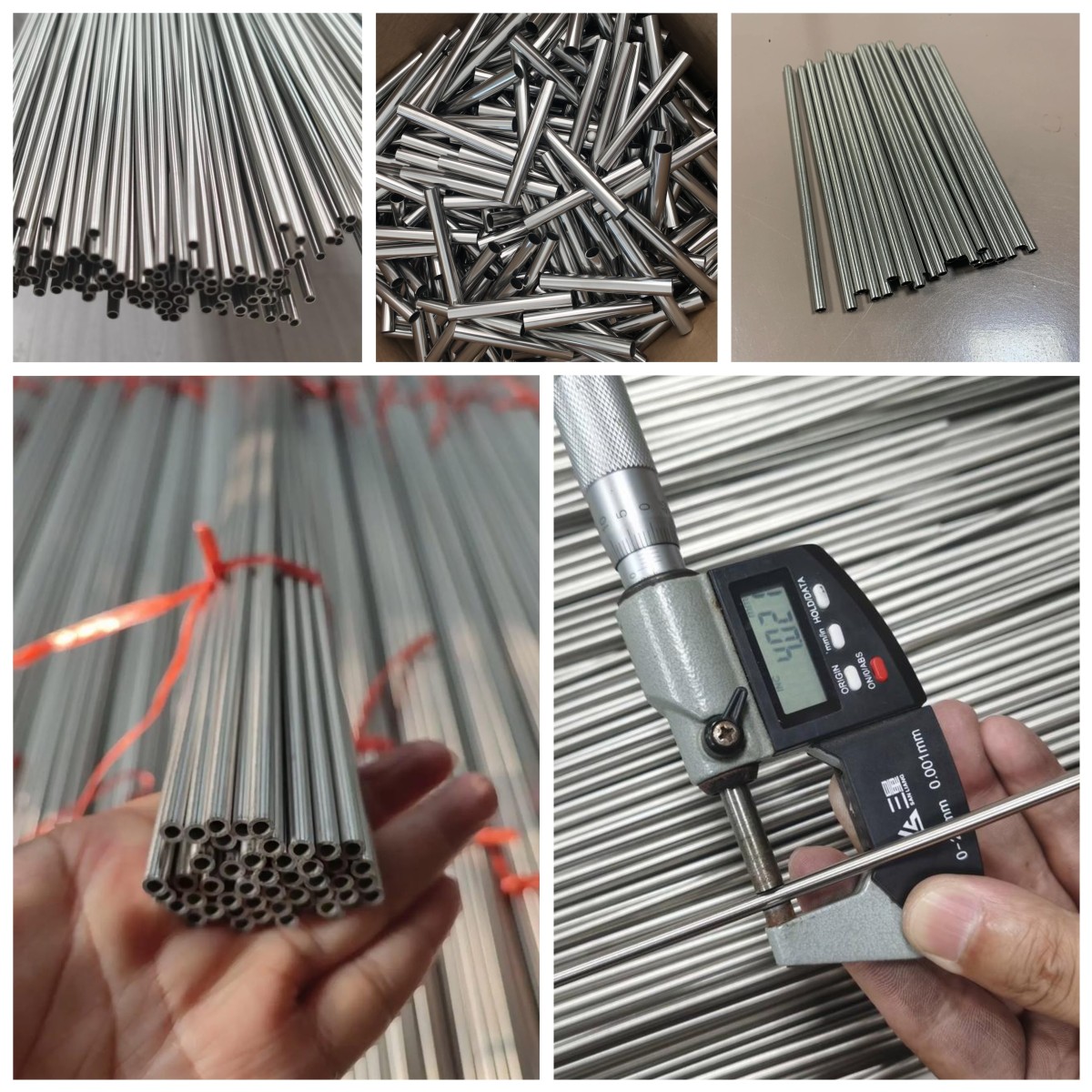

PRODUCT DISPLAY

We adopt high standard production processes, select high-quality steel raw materials, and provide diverse product specifications and models. All steel products have passed strict quality testing, with smooth and even surfaces, precise dimensions, excellent compressive strength, corrosion resistance, and processability. Support customized thickness, length, and special process requirements to meet different usage standards in different scenarios. Clear display of high-definition detailed images and technical parameter tables of the physical object, ensuring transparent and visible quality.

PRODUCT APPLICATION

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

PRODUCT PACKAGING

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.
